VectorPro is an affordable, user friendly test development tool used for generating cyclized ATE test vectors in either WGL or STIL formats. This highly versatile tool reads in both VCD and EVCD formatted design simulations, and through the use of a flexible GUI, users are able to view and modify the simulation to fit the needs of their test environment. VectorPro supports multiple timesets, signal conditioning, histogramming of signal traces, automated timing generation and batch mode operation.


•Download the VectroPro Brochure – click here (1.5 mb)

You can download VectorPro and try it out in “demo” mode, or contact us to purchase a license for full capability.

VectorPro Features

General

  • GUI or Command Line Interfaces
  • Batch Mode Processing
  • Automated Timing Generation
  • Windows (XP/2000, Vista, 7) and Linux (kernel 2.6 or higher) Supported
  • Optimized for speed and minimal system resouces

Readers

  • VCD/EVCD input formats
  • Support for saving simulation comments

Writers

  • WGL or STIL output formats
  • Support for Vector Repeats
  • GZip compression support

Timing

  • Edgeset or Timeset conversion modes
  • Binning mode with 8 drive/receive edges
  • Return and Non-Return formats
  • Automated Edgeset Generation

Database Conditioning

  • I/O transitions
  • Snap Events to cycle boundaries
  • Mask Signals
  • Mask Transition Edges
  • Remove Simulation Artifacts
  • Un-do and Re-do option

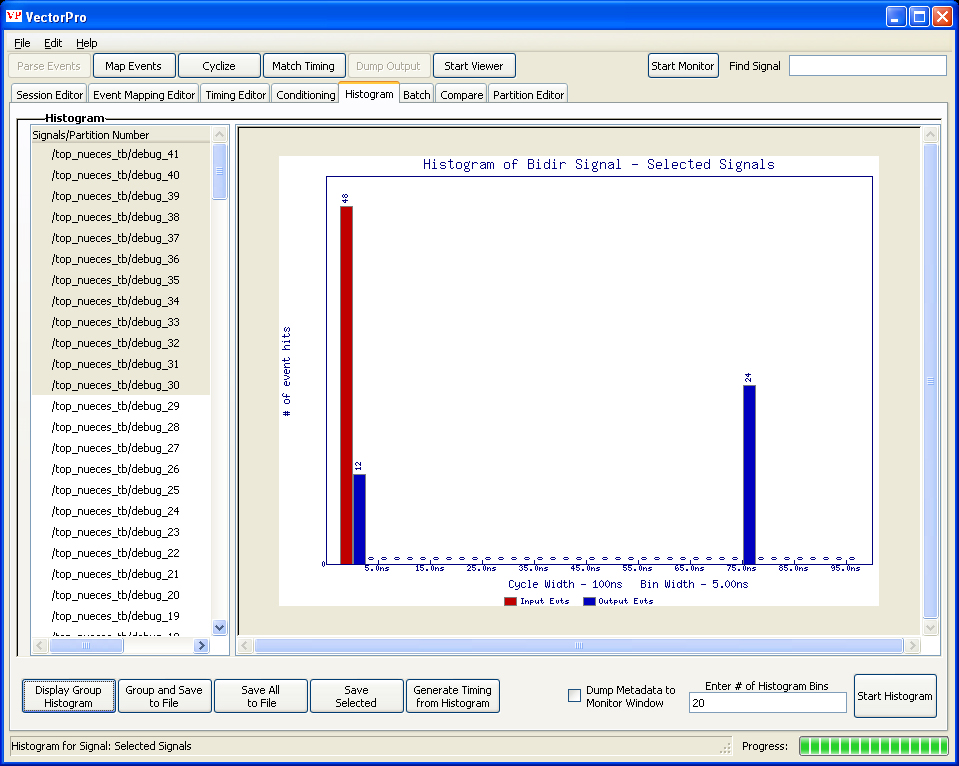

Histogramming

  • Graphical Histograms of event locations relative to the cycle width
  • Signal or Group support
  • Advanced histogram meta-data

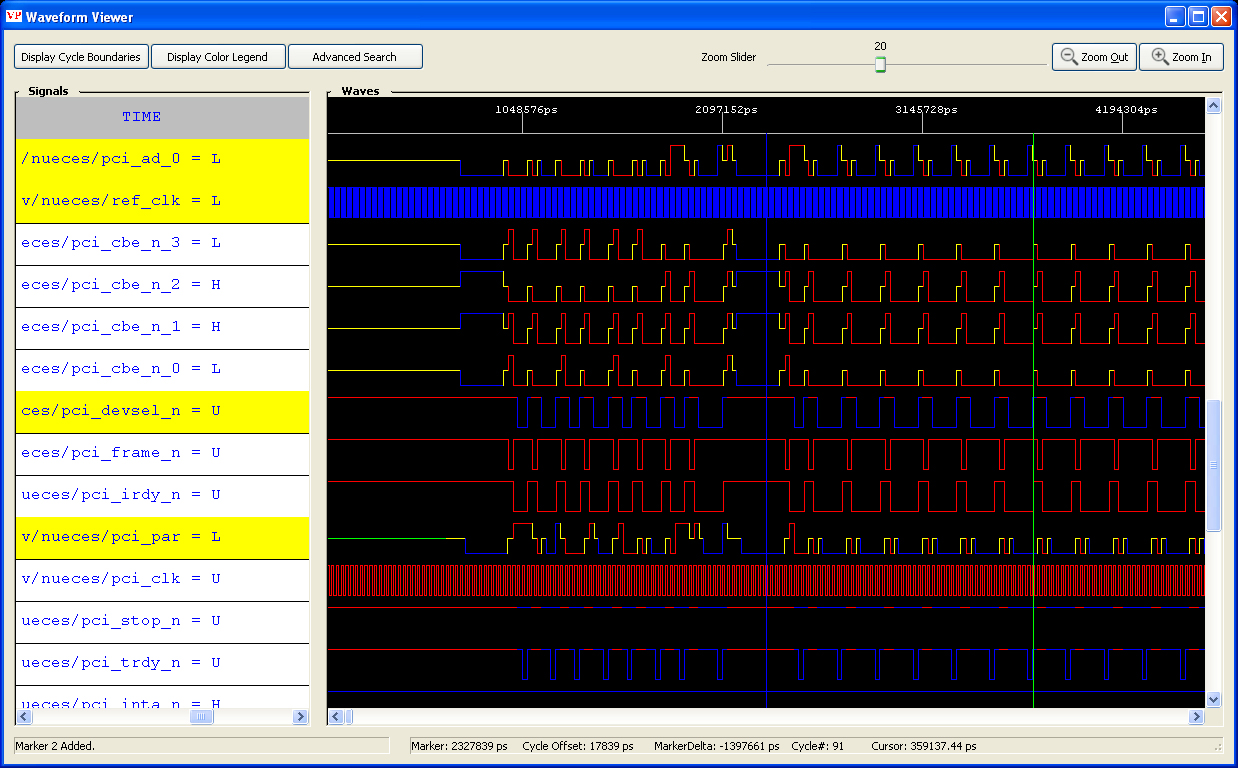

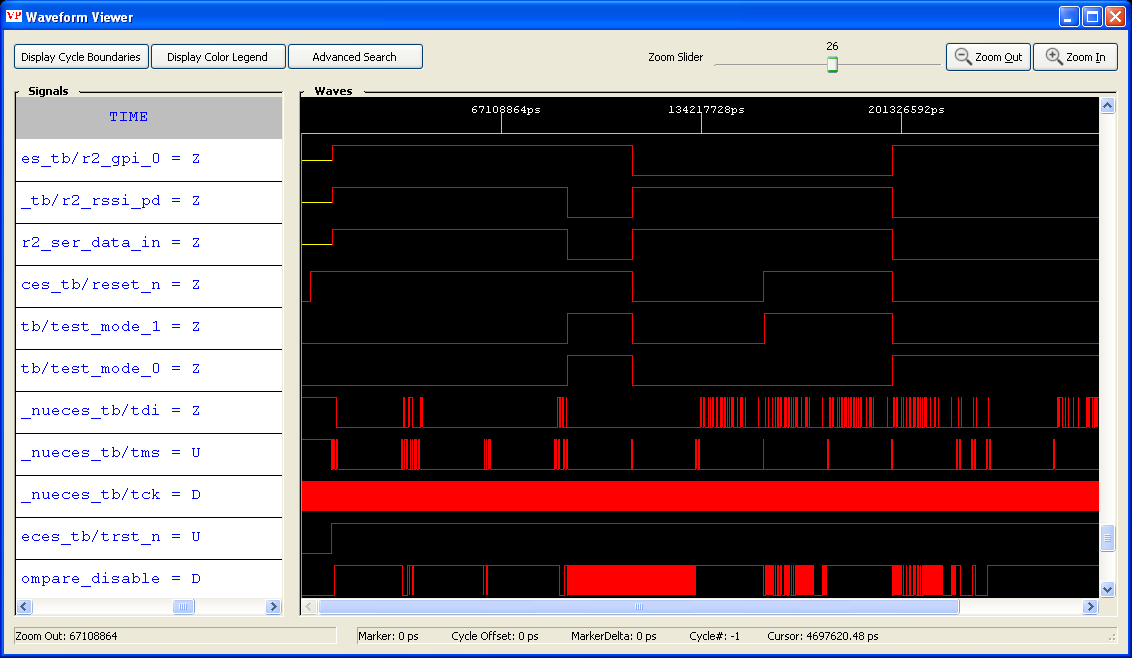

Waveform Viewer

  • Advanced Search Capabilities
  • Zoom In/Out
  • Dual Markers supported
  • Waveform Annotation Support
