VectorPort is an affordable, versatile test development tool for converting WGL or STIL test vectors into targeted ATE tester formats, including pattern, timing, and pinmap data. VectorPort can read and write most major formats in both parallel (Flat) vectors and serial (SCAN) vectors.


•Download the VectorPort product brochure here(1.2MB)

You can download VectorPort and try it out in “demo” mode, or contact us to purchase a license for full capability.

VectorPort Features

General

  • GUI or command line interfaces
  • Single or multiple files processed per run
  • Windows (XP, 2k, Vista, 7), Linux, and Solaris supported
  • Optimized for speed and minimal system resources

Readers

  • Wgl or STIL input formats
  • Support for Scan
  • Support for vector repeats
  • Support for vector loops
  • Support for equations
  • Support for WinZip and Gzip files

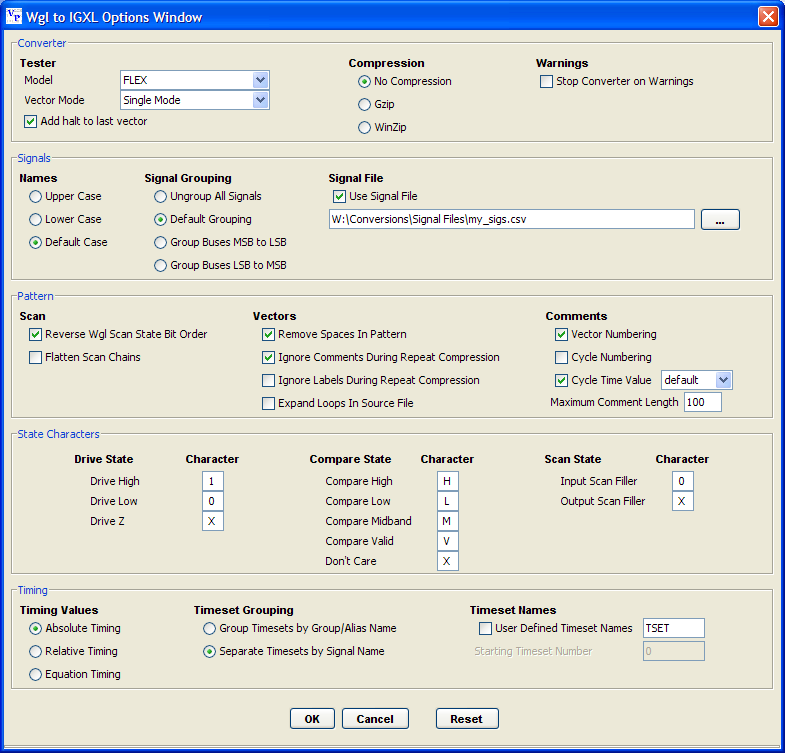

Writers

  • Teradyne A580/Catalyst/J750/FLEX/UltraFLEX, Credence Duo/Quartet, LTX VX4, Verigy 83k/93k, Advantest T2000, Eagle ETS, VCD/EVCD formats
  • Support for vector repeats
  • Support for Teradyne J750/FLEX vector loops
  • Support for Teradyne J750/FLEX/UltraFLEX single/extended, normal/dual, and quad modes
  • Ability to convert Scan/serial vectors into parallel vectors
  • Reassign default pattern characters
  • Preserve timing equations
  • Rename timesets
  • Timeset grouping
  • WinZip and Gzip compression

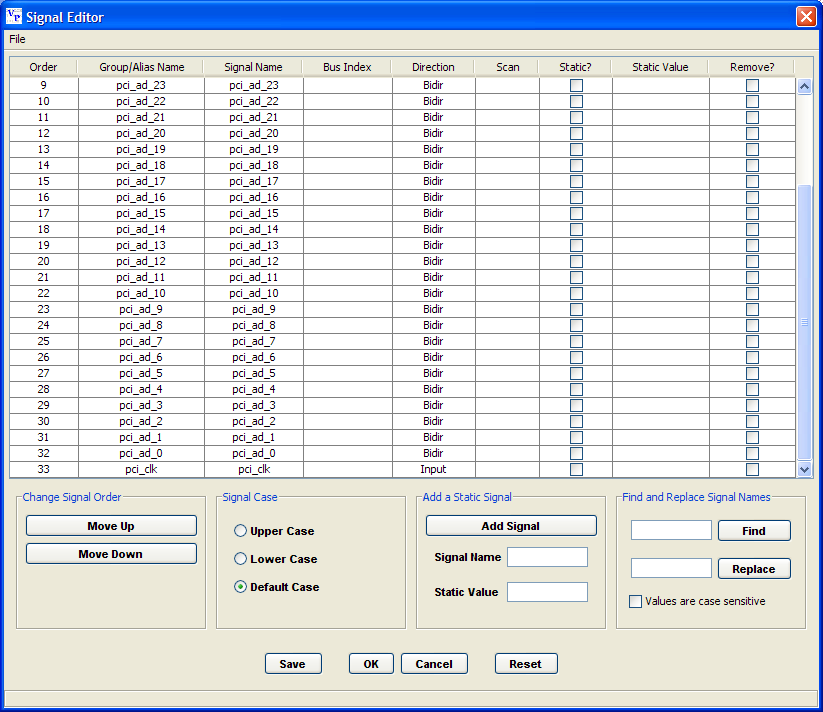

Signal Editor

  • Rename, remove, reorder, add, and group signals
  • Save signal file for use with later conversions
  • Signal file can be saved for later conversions

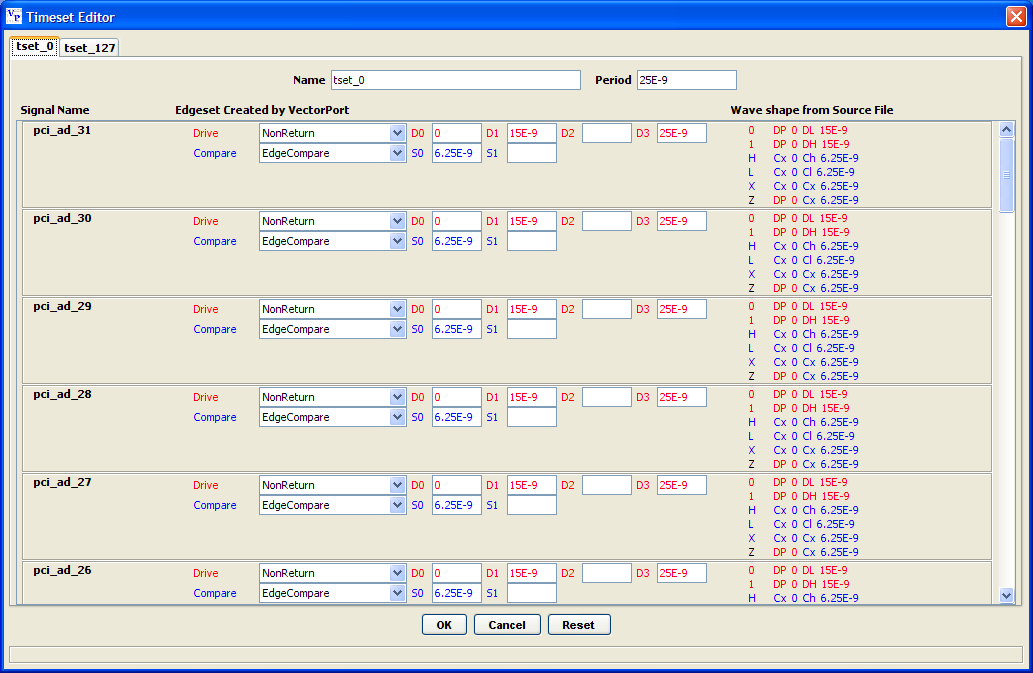

Timing Editor

  • Displays timing information for all signals
  • Change names, formats, edges

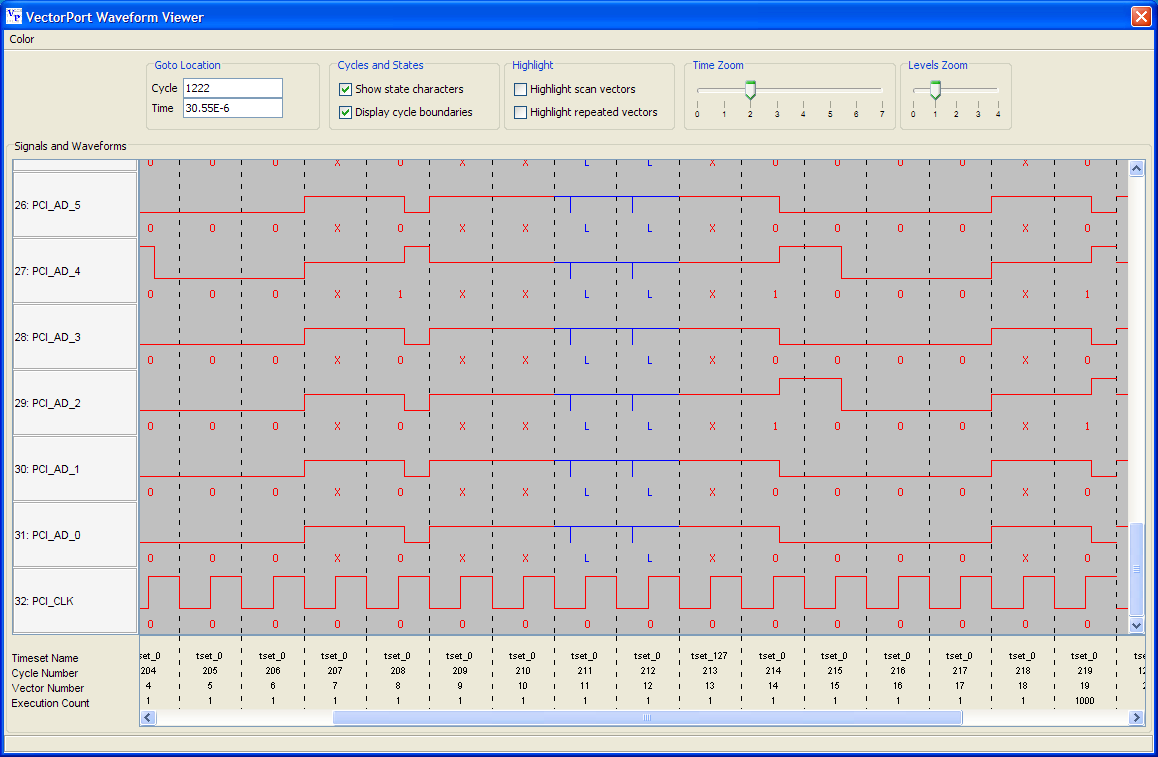

Waveform Viewer

  • Graphically displays converted pattern
  • Shows pattern characters for each signal
  • Zoom in/out
